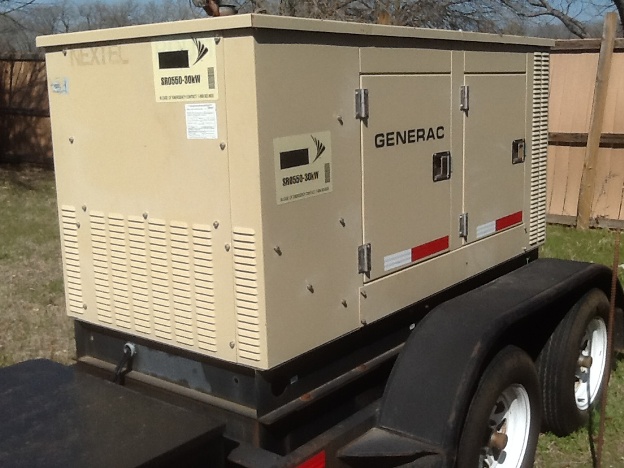

Mobile Power Generator
A/C Power genrator - 30,000 watts single phase (125 amps 240v / 250 amps 120v)
A/C Power primary distribution system

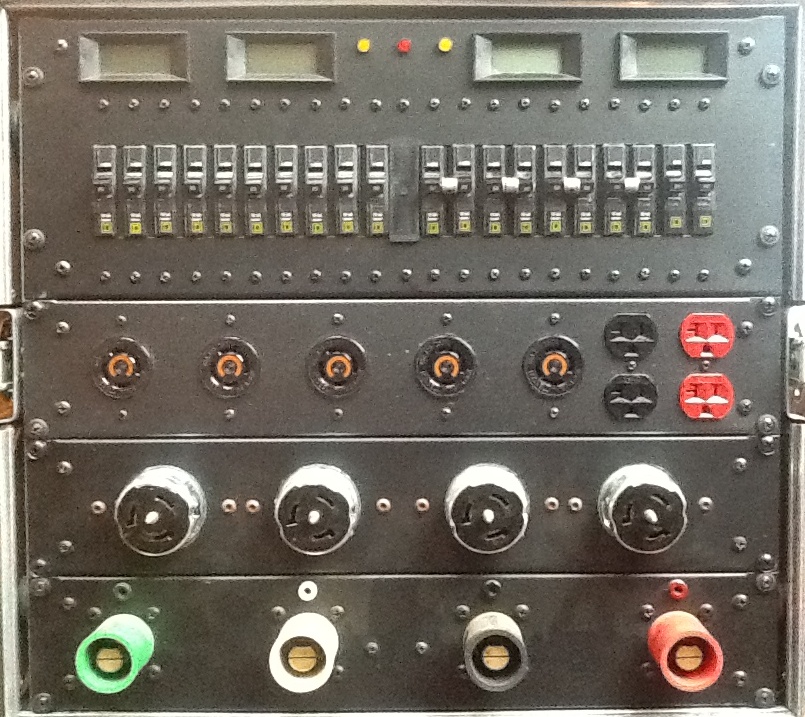

Main power distribution panel (used with generator or venue's power service)
- 400 Amp 240 V (2x400 Amp 120 V) cam-lock power inputs
- Four 50 Amp, 120/240V circuits servicing secondary/remote power distribution panels
- Five 20 Amp, 120/240V twist-lock circuits for high-power lights and/or stage outlets
- Two 20 Amp standard Eddison Duplex outlets
- Power indicator lights and fault indicator light
- Digital meters for Voltage and Amperage for X and Y leg of the single power phase
Amp racks power distribution modules

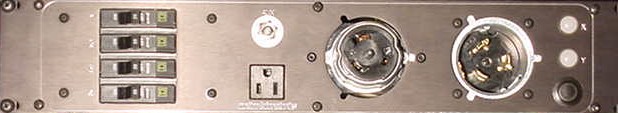

(front panel view)

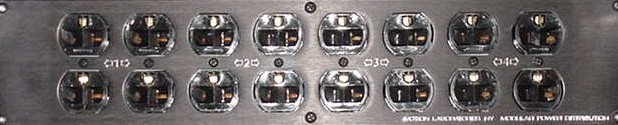

(back panel view)
Each modular power panel has these characteristics:
-
50 Amp 240 V (2x50 Amp 120 V)
-
Four 20 Amp breakers servicing two edison duplex sockets per breaker
-
Single auxiliary 15 Amp plug front access
-
Daisy-chainable to more power panels

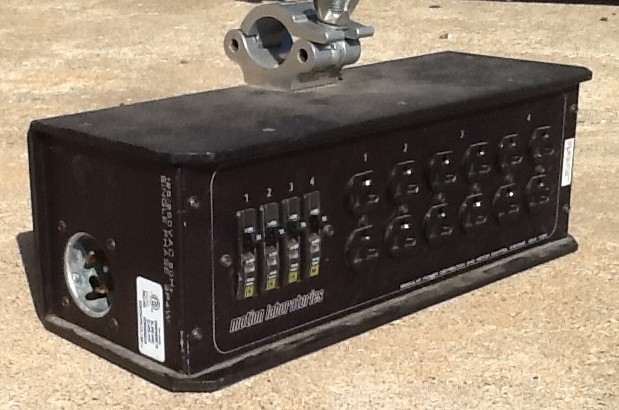

Stringer power distribution modules
Each stringer power distribution module has these characteristics:
-
50 Amp 240 V (2x50 Amp 120 V)
-
Four 20 Amp breakers servicing standard Edison duplex sockets
-
Clamp for optional mounting to truss
-
Daisy-chainable to more power modules (50A 120/240 in/thru)

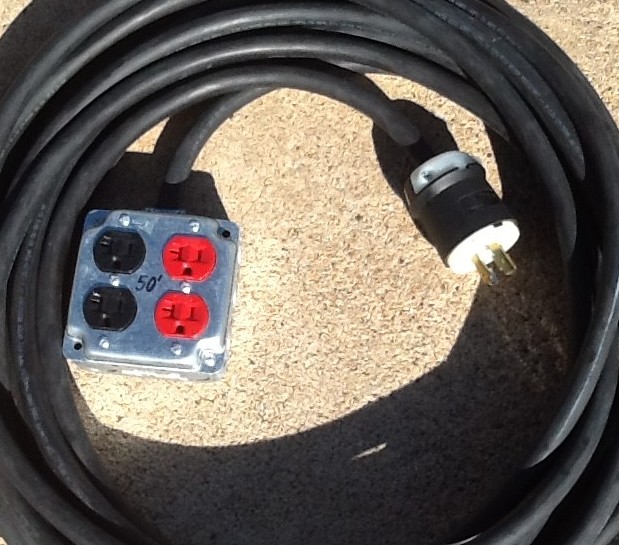

Stage Drops (Dual Edison duplex, two 20A circuits)
Each power drop has these characteristics:
-
20 Amp 120/240V twist-lock connector
-
Two 20 Amp standard Edison duplex sockets (color coded for X and Y)
Configurations and Pricing
Mobile A/C Power Generator includes power distribution system.
- $225.00 - 1 day (8 hour shift) base price
- $125.00 - each additional 8 hour shifts
- $600.00 - 1 week (five 8 hour shift work days)
- $50.00 - delivery, setup, and pickup
- $1.00/mile ($0.50/mile round trip) travel expense for beyond Denison/Sherman area
- Plus current diesel fuel price for gallons consumed
Contact me for any questions.
