Dual 100 Amp A/C power distribution
system
(front panel view)
(back panel view)
Each modular power panel has these characteristics:
-
50 Amp 240 V (100 Amp 120 V)
-
Four 20 Amp breakers servicing two edison duplex sockets per breaker
-
Single auxiliary 15 Amp plug front access
-
Daisy-chainable to more power panels

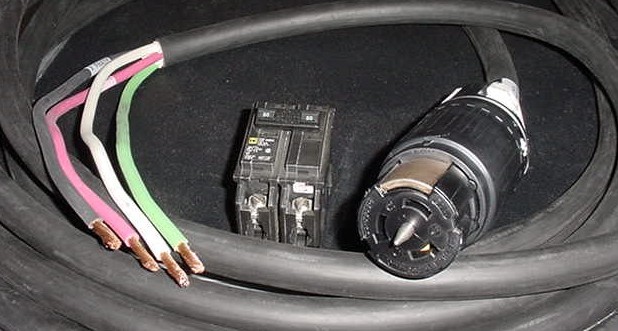

Power cables:
-
6 AWG, 4 conductor, multi-strand copper cable
-
50 Amp 240 V (100 Amp 120 V) twist-lock connector
-
Connects to venu's breaker pannel using a double throw 50 Amp breaker
